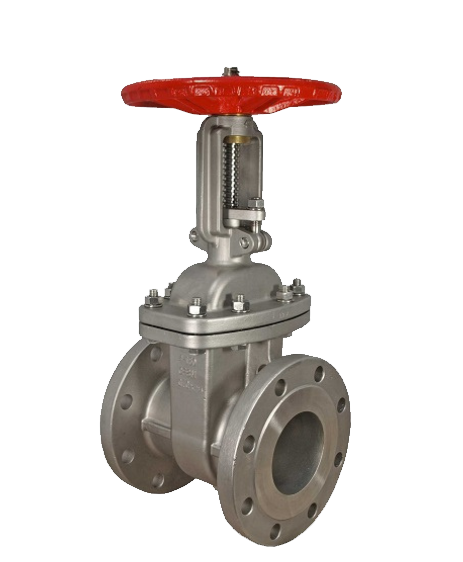

A gate valve is a type of valve that is primarily used to start or stop the flow of fluid in a pipeline. It operates by lifting a rectangular or circular gate out of the flow path, allowing for unobstructed flow when fully open and complete closure when fully shut. Key Characteristics: • Design: Typically features a wedge-shaped gate that slides between two seats. The design allows for minimal resistance to flow when the valve is open. • Operation: Can be operated manually with a handwheel or automatically with an actuator. It is designed for on/off service rather than throttling. • Sealing: Provides a tight seal when closed, preventing leakage. Advantages: • Low Flow Resistance: When fully open, gate valves offer minimal turbulence and resistance, making them ideal for applications requiring unrestricted flow. • Durability: Built from materials like cast iron, stainless steel, or brass, ensuring long-term reliability and resistance to wear. • Versatile: Suitable for a wide range of applications, including water, oil, and gas systems. Applications: • Water Supply: Commonly used in municipal water systems for controlling flow to different sectors. • Oil and Gas: Essential in pipeline systems for shutting off flow during maintenance or emergencies. • Industrial Processes: Found in various manufacturing settings where isolation of fluid flow is required. In summary, gate valves are an effective choice for applications that require reliable on/off control with minimal flow resistance. Their robust design and versatility make them a staple in many industries. FEATURES OF GLOBE VALVE • COMPACT DESING • LONGER LIFE • BOLTED BONNET • SMOOTH OPARETION • SEAT RING SCREWED IN BODY (REPLACEABLE SEAT) OR INTERGAL TYPE • DIE MOULD GRAPHITE PACKING RING SUITABLE FOR HIGH TEMPERATURE • LAPPED DISC AND SEAT FACES SPECIAL OPTION AVAILABLE FOR GLOBE VALVE • EXTENDED BONNET TYPE • GEAR OPERATED • STELLITED DISC, SEAT RING & BACK SEAT ALSO AVAILABLE ON REQUIREMENT TECHNICAL DATA DESING STANDARD BS 1873/ASME B 16.34 INSPECTION & TESTING STANDARD BS EN ISO 12266-I (BS 6755-I) FLANGE TO FLANGE DIAMANSION AS PER ANSI B 16.5/BS 2080 END CONNECTION FLANGE END AS PER ANSI B 16.5, CLASS 150/300/600 BS 10 TABLE D / TABLE E / TABLE F / TABLE H SCREWED END BSP/NPT (ON REQUIREMENT) SOCKET WELDED MANUFACTURING SIZE RANGE ½” TO 8” PRESSURE RATING OF VALVE 150#/300#/600# VALVE OPERATION MANUAL HAND WHEEL/ GEAR LEAKAGE CLASS IV (NO LEAKAGE) TEST PRESSURE CLASS HYDROSTATIC SEAT TEST AIR TEST 150# 31.5 Kg/cm² 22 Kg/ cm² 7 Kg/ cm² 300# 79 Kg/cm² 58 Kg/cm² 7 Kg/cm² 600# 157.5 Kg/cm² 114 Kg/cm² 7 Kg/cm²
