Description
Product details

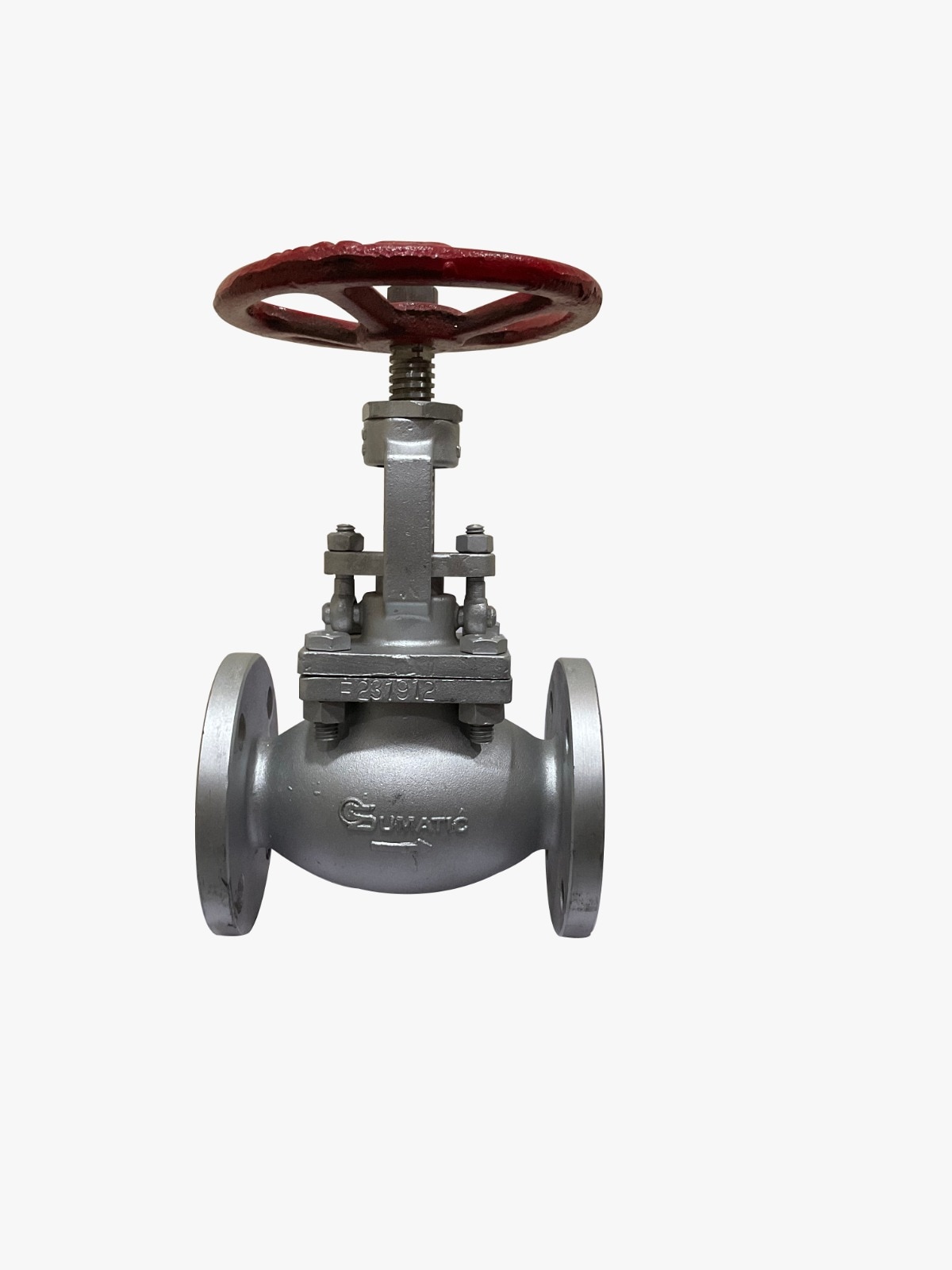

globe valve is a type of valve used primarily for regulating flow in a piping system. It features a distinctive spherical body shape with an internal baffle that directs the flow of fluid through the valve. The valve operates by raising or lowering a disc (or plug) within the valve body, allowing for precise control of flow rates. Key Characteristics: • Design: The globe valve's body is usually spherical, providing a streamlined flow path. The disc's movement allows for effective throttling. • Operation: Typically operated manually via a handwheel or automatically through an actuator, enabling easy flow regulation. • Sealing: The valve can achieve tight sealing, minimizing leaks when closed. Advantages: • Flow Control: Ideal for applications that require precise modulation of flow. • Durability: Constructed from robust materials such as brass, stainless steel, or cast iron, ensuring long service life. • Versatility: Suitable for various applications, including water, steam, oil, and gases. Applications: • Water Supply Systems: Used in municipal and industrial settings to manage water flow. • Chemical Processing: Essential for controlling the flow of chemicals in processing plants. • Heating and Cooling Systems: Commonly found in HVAC applications for regulating fluid movement. Overall, globe valves are a reliable choice for applications requiring careful flow management, combining durability and precision in operation. FEATURES OF GLOBE VALVE • COMPACT DESING • LONGER LIFE • BOLTED BONNET • SMOOTH OPARETION • SEAT RING SCREWED IN BODY (REPLACEABLE SEAT) OR INTERGAL TYPE • DIE MOULD GRAPHITE PACKING RING SUITABLE FOR HIGH TEMPERATURE • LAPPED DISC AND SEAT FACES SPECIAL OPTION AVAILABLE FOR GLOBE VALVE • EXTENDED BONNET TYPE • GEAR OPERATED • STELLITED DISC, SEAT RING & BACK SEAT ALSO AVAILABLE ON REQUIREMENT TECHNICAL DATA DESING STANDARD BS 1873/ASME B 16.34 INSPECTION & TESTING STANDARD BS EN ISO 12266-I (BS 6755-I) FLANGE TO FLANGE DIAMANSION AS PER ANSI B 16.5/BS 2080 END CONNECTION FLANGE END AS PER ANSI B 16.5, CLASS 150/300/600 BS 10 TABLE D / TABLE E / TABLE F / TABLE H SCREWED END BSP/NPT (ON REQUIREMENT) SOCKET WELDED MANUFACTURING SIZE RANGE ½” TO 8” PRESSURE RATING OF VALVE 150#/300#/600# VALVE OPERATION MANUAL HAND WHEEL/ GEAR LEAKAGE CLASS IV (NO LEAKAGE) TEST PRESSURE CLASS HYDROSTATIC SEAT TEST AIR TEST 150# 31.5 Kg/cm² 22 Kg/ cm² 7 Kg/ cm² 300# 79 Kg/cm² 58 Kg/cm² 7 Kg/cm² 600# 157.5 Kg/cm² 114 Kg/cm² 7 Kg/cm²
